N-Button Lite/Pro software Automation feature allows you to trigger relay channel with push notification contact closure series of National Control Devices. That means you can match input channels on push notification series with relay channels on relay board. The relay channels will be controlled when the input status changes.
Here will show you how to set up N-Button Lite/Pro software to turn on/off relay with push notification input channel.
Task: Trip input channel 1 to turn on relay channel 1 , otherwise turn off relay channel 1
Step 1. Download and install N-Button Lite or Pro software

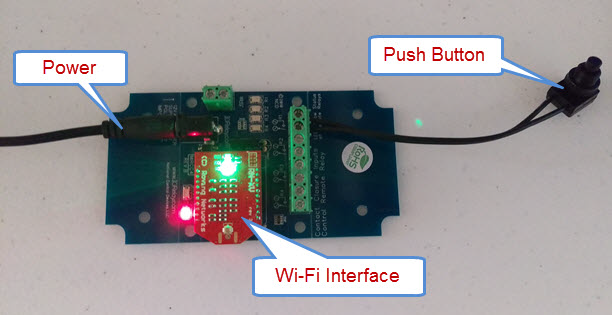

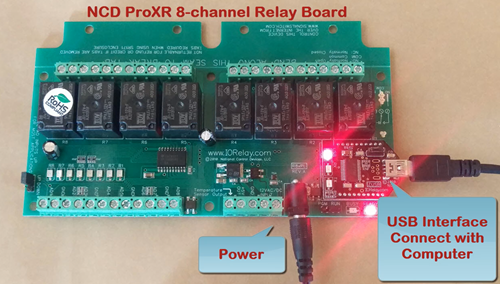

Step 2. Connect relay board and push notification board with your computer.

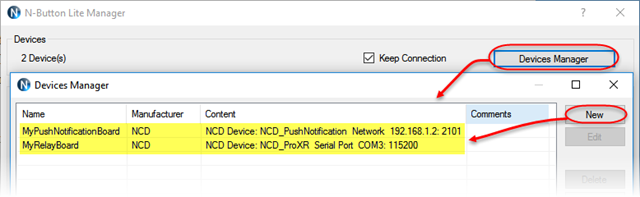

Step 3. Run N-Button Lite/Pro software. Click Devices Manager –> New to add relay board and push notification board to Devices Manager.
Click the link below to get more information about how to set up push notification board with N-Button Lite/Pro.
- Set up USB Push Notification Board with N-Button
- Set up Wi-Fi Push Notification Board with N-Button
- Set up Ethernet Push Notification Board with N-Button

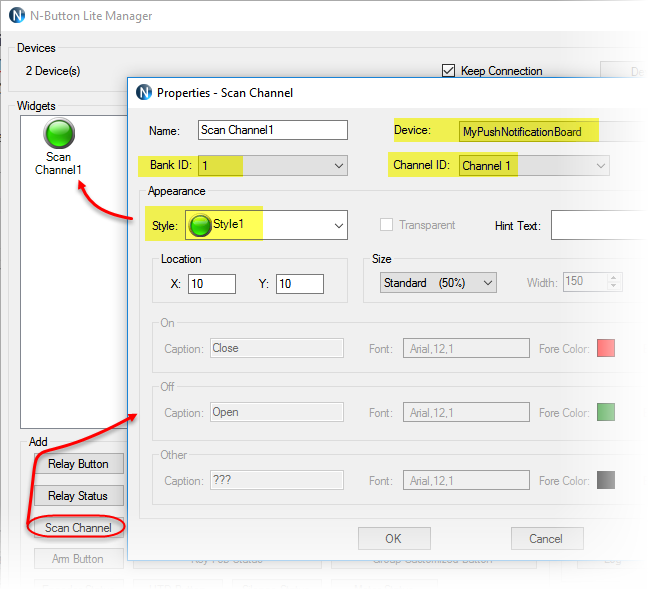

Step 4. Click Scan Channel to open Properties – Scan Channel. Select Device – MyPushNotificationBoard added above, keep Bank ID 1, select Channel ID 1, select Style for Scan Channel widget.
Step 5. Click OK on both above panels. You will see the Scan Channel widget showing on your desktop with Red color.
Trip input channel 1( or press the push button connected with input channel 1), you will see the Scan Channel widget on your desktop turns to Green. Release the button, the widget turns to red again. That indicates the push notification board works well with N-Button.

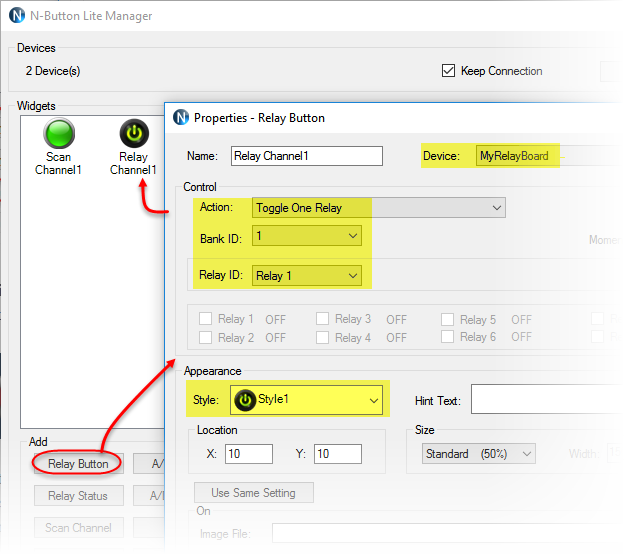

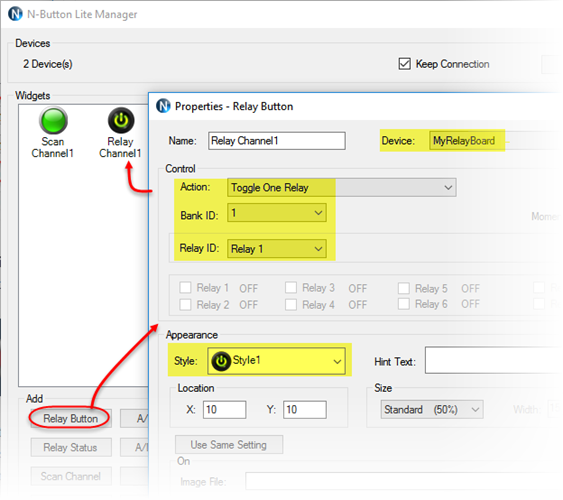

Step 6. Add a Relay Button widget for relay channel 1. It’s similar as Step 4. Just be sure you select Device – MyRelayBoard, Action – Toggle One Relay, Bank ID –1, Relay ID –1, select the Style which will show relay status.
Step 7. Click the Relay Button widget on your desktop to turn on/off relay. The relay status will be shown on the button, green for on and red for off. That makes sure the relay board works well with N-Button also.
Note: Here, only one Relay Button is added with action Toggle One Relay. You can add two buttons, one for Turn On One Relay, another for Turn Off One Relay. You can also add Relay Status widget just show the status of relay channel 1.

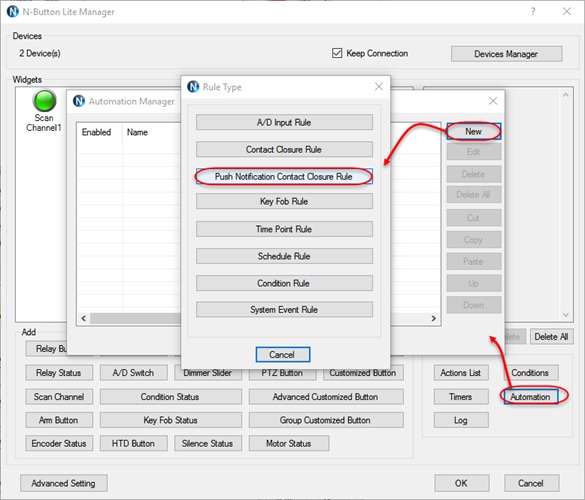

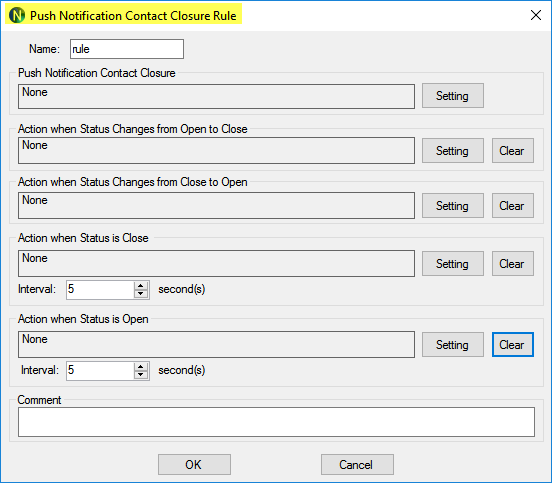

Step 8. Right-click on Scan Channel widget or Relay Button widget to show pop-up menu, click N-Button Lite/Pro Manager to open the manager panel. Click Automation on N-Button Lite/Pro Manager to open Automation Manager. Click New to show Rule Type panel. Click Push Notification Contact Closure Rule to open setting panel.

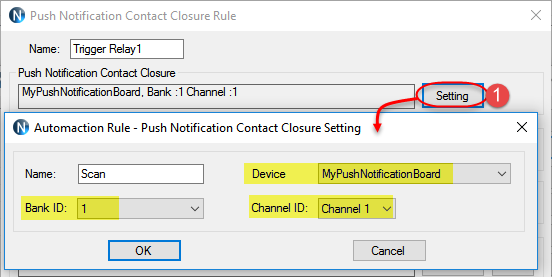

Step 9. Click the first Setting button to select Device – MyPushNotificationBoard, Bank ID 1 and Channel ID 1, which you will trigger to turn on relay channel 1.

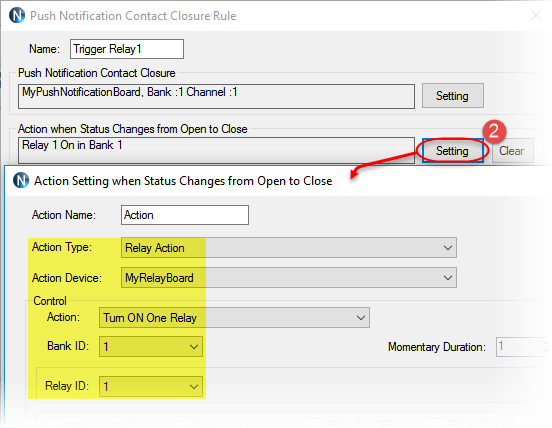

Step 10. Click the second Setting button to select:
- Action type –Relay Action
- Action Device – MyRelayBoard
- Control Action – Turn On One Relay
- Bank ID – 1
- Relay ID – 1

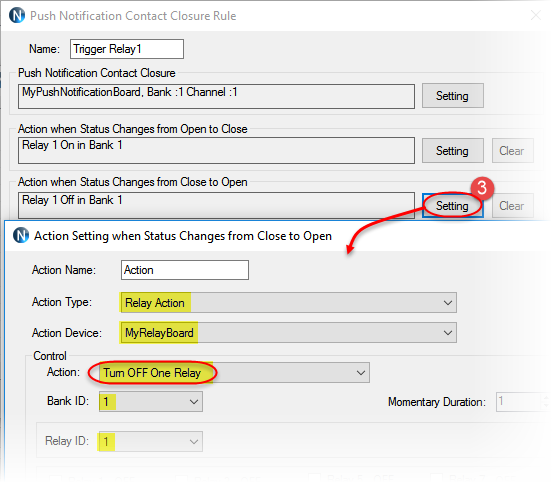

Step 11. Click the third Setting button to select:
- Action type –Relay Action
- Action Device – MyRelayBoard
- Control Action – Turn Off One Relay
- Bank ID – 1
- Relay ID – 1
Step 12. Click OK on all above panels to finish Automation control setting until you see the Scan Channel widget on your desktop.
Now, you can control relay channel 1 with input channel 1 (the push button) . You will see the relay 1 turns on when your press the push button, and turns off when you release the push button. The Relay Button widget on you desktop will also shows the relay status when it turns on and off.
- Note: Step 10 and Step 11 are key to select the actions when input channel Open or Close. You can select different actions to meet your requirement.
