How to send sequence data at given time automatically

This point can be reached by following steps:

Step 1. Open Comm Operator NCD Edition.

Step 2. Select Edit->Auto Send from menu to open Auto Send Rule Setting dialog shown as below.



Step 3. Click to show Select Rule Type dialog shown as below.



Step 4. Select 'Group Data Rule' , click to show Group Data Rule dialog shown as below.



Step 5. Input the name or keep the default name.

Step 6. Setting Start Event.

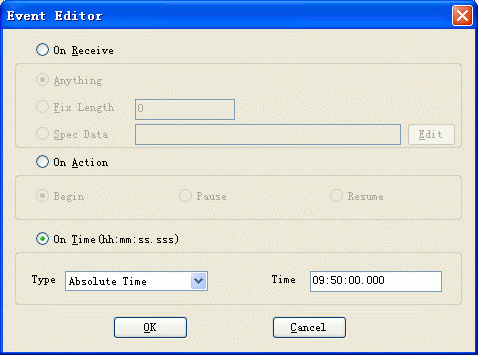

• Click to open Event Editor dialog.
• Select On Time .
• Select Absolute Time type.
• Set the time to send the data.(Here is 12:00:00)

• Click to return Group Data Rule dialog.



Step 7. Setting Step Event.

• Selcet Loop option on Group Data Rule dialog.
• Click to open Event Editor dialog.
• Select On Time option.
• Select From Last Send End type.
• Input the time.

• Click to return Group Data Rule dialog.



Step 8. Edit the sent data.

• Click on Group Data Rule dialog to open Data Editor.
• Input the sent data name.(Not required)
• Select the format of data.
• Input the data that will be sent at given time.
• Add some comments about the data.(Not required)

• Click to return Group Data Rule dialog.
• Reopen above dialog to add other data.

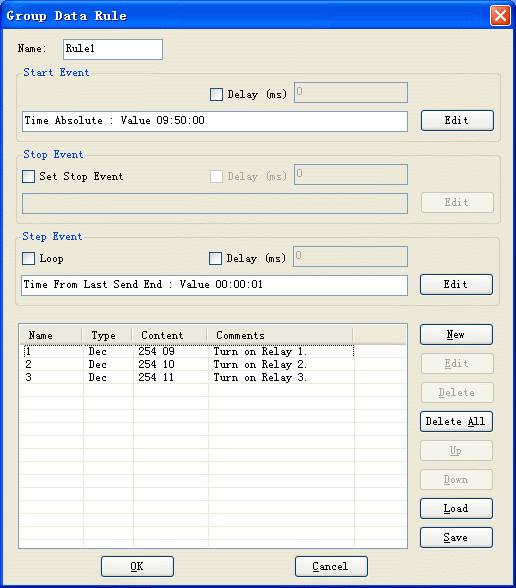

Step 9. After finishing Step 4 to Setp 7, the Group Data Rule dialog should be shown as below.

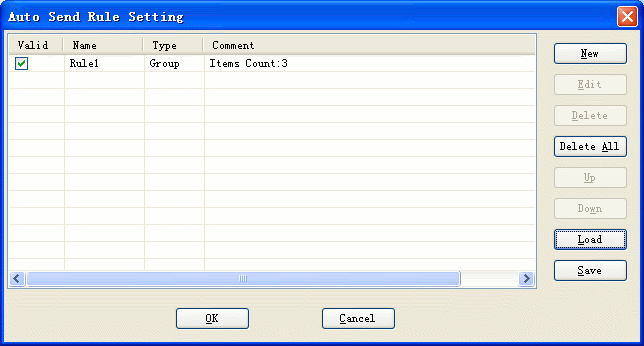

• Click to return Auto Send Rule Setting dialog, the rule will be list on this dialog, check it.

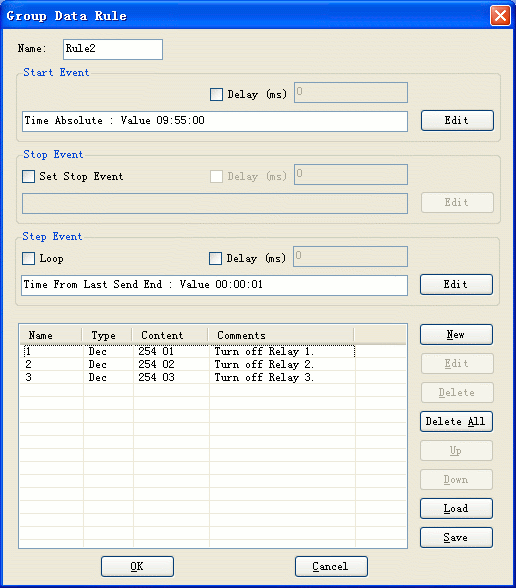

• Repeat Step 2 to Step 8 to add another rule show as below.

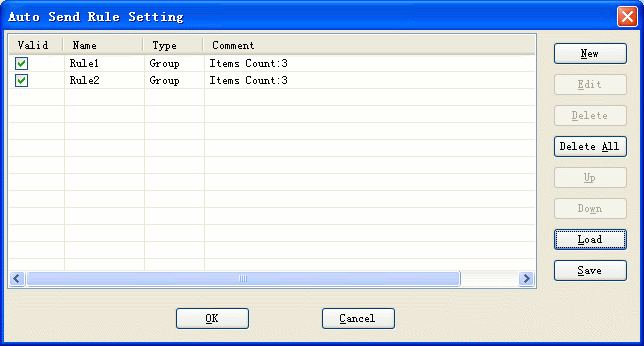

• Click to return Auto Send Rule Setting dialog, Rule1 and Rule2 will be list on this dialog, check both of them.

• Click to complete setting.

Step 10. Run the rule.

• Open the port before runing the rule.
• Click on toolbar to run the rule.
• The data in Rule1 will be sent at 12:00. The data in Rule2 will be sent at 12:30. The result is shown in log window as below.
