Install PTZ Controller PPC

1. Required Hardware

The following is the minimum hardware that is required to run PTZ Controller PPC:

. Pocket PC 2003 or later

. Microsoft ActiveSync and synchronization hardware for application installation

. RS232 serial adaptor cable suitable to connect the Pocket PC with a standard DB9 serial port on the peripheral devices (PTZ dome)

About the serial adaptor cable, one solution is a Compact Flash to Serial adaptor such as the Serial I/O CF Card manufactured by Socket. Another option is to obtain a serial adaptor that connects directly to the synchronization port of the Pocket PC.

2. To install PTZ ControllerPPC

. Connect the Pocket PC to the desktop PC and ensure that ActiveSync is operating correctly.

. Run PTZ Controller PPC setup executable file on your desktop PC and follow the installation wizard to finish intalling.

Another way to install PTZ Controlle PPC:

. Copy Relay Time PPC setup *.cab file from desktop PC to Pocket PC.

. Run the *.cab file on Pocket PC to finish intalling.

Select Protocol

Click Option -> Protocol to select a protocol.

PTZ Controller PPC supports standard Pelco D protocol, Pelco P protocol, AD protocol, Bosch protocol and Sony protocol. The default protocol is Pelco D.





Select COM Port

Click Option-> COM Port to select an existing COM Port.

All available COM ports will be detected automatically and list here. The default port is "COM1".

Select Baudrate

Click Option -> Baudrate to select baudrate for the COM port. The default baudrate is "2400".



Select PTZ Address

Click PTZ Address ComboBox to select an Address for PTZ camera. The default PTZ Address is "0".

Move Camera

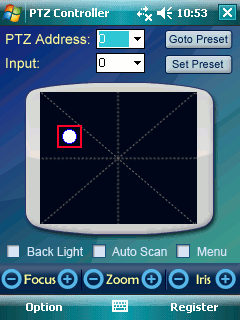

Touch the Moving Area, a white dot will be shown as below. The PTZ camera will rotate at a specified speed which is determined by the location of the white dot in the Moving Area.

Note: Center point is the Zero point which means center point get zero speed. The more the white dot position far away from the Zero point, the faster the rotate speed. The more the position near to the Zero point, the slower the rotate speed.

Preset Position

Move the camera to the position you want.

Select a number in Input ComboBox. (Not all numbers are available, some numbers have been used by other functions, for example, 95 is to open menu for most of PTZ Cameras.)

Click Set Preset button to remember this position.

When you want to go to the same position again, just input the same number you have input above, and click GoTo Preset button.

Use Back Light

Click Back Light CheckBox to open or close Back Light of PTZ camera. The default Back Light is close.

Use Auto Scan

Click Auto Scan CheckBox to open or close Auto Scan of PTZ camera. The default Auto Scan is close.

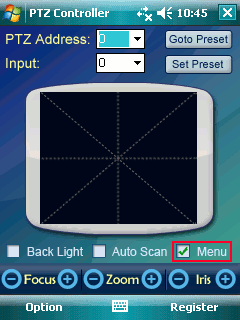

Use Menu

Click Menu CheckBox to open or close Menu of PTZ camera. The default Menu is close.

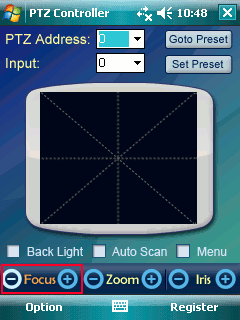

Use Focus

Click the Focus Button to focus far or focus near for PTZ camera.

Use Zoom

Click the Zoom Button to zoom out or zoom in for PTZ camera.

Use Iris

Click the Iris Button to open Iris or close Iris for PTZ camera.
