Quick Timer PPC User Manual

How to Install
How to Set COM Port
How to Turn On/Off Relay Manually
How to Turn On/Off Relay Automatically
Rapid Buttons

How to Install

1. Required Hardware

The following is the minimum hardware that is required to run Quick Timer PPC:

. Pocket PC 2003 or later

. Microsoft ActiveSync and synchronization hardware for application installation

. RS232 serial adaptor cable suitable to connect the Pocket PC with a standard DB9 serial port on the peripheral devices (Relay Control Board)

About the serial adaptor cable, one solution is a Compact Flash to Serial adaptor such as the Serial I/O CF Card manufactured by Socket. Another option is to obtain a serial adaptor that connects directly to the synchronization port of the Pocket PC.



2. To install Quick Timer PPC

. Connect the Pocket PC to the desktop PC and ensure that ActiveSync is operating correctly.

. Run Quick Timer PPC setup executable file on your desktop PC and follow the installation wizard.

Another way to install Quick Timer PPC:

. Copy Quick Timer PPC setup *.cab file from desktop PC to Pocket PC.

. Run the *.cab file on Pocket PC to finish intalling.

Set COM Port

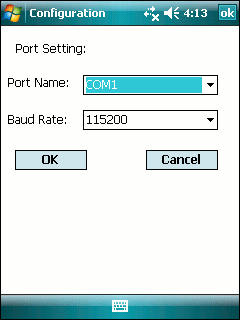

Click button to open the Configuration dialog.

Select Port Name and Baud Rate.

Click OK to finish setting.



Turn On/Off Relay Manually

The light on top right of relay control panel indicates the status of the relay. Red is for relay on. Green is for relay off.

Only in manual mode, the switch is avilable.

Click the slider to turn on the relay. The light becomes green.

Click the slider again to turn off the relay. The light becomes red.



Turn On/Off Relay Automatically

The relay must be set before it step into auto mode.

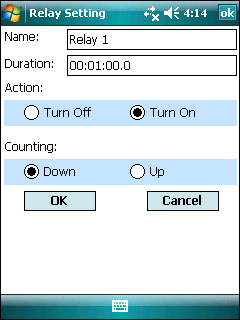

Click Setting button on the relay control panel to open Relay Setting dialog.





Input Duration, select Action and Counting mode.

Click OK to finish relay setting.

Click button to start auto mode. The relay will work according to above setting automatically.

Click button to pause auto mode. The status of relay can be controlled manually now.

Click button to stop auto mode. The status of relay can be controlled manually now.



Rapid Buttons

Click to set all relays in auto mode.
Click to stop all relays in auto mode.
Click to turn all relays on.
Click to turn all relays off.
Click to load a *.tmr file to get time settings of all relays.
Click to save time settings of all relays to a file (*.tmr)
Click to load a *.sat file to set status of all relays.
Click to save current status all relays to a file (*.sat)
Click to open Configuration dialog.
